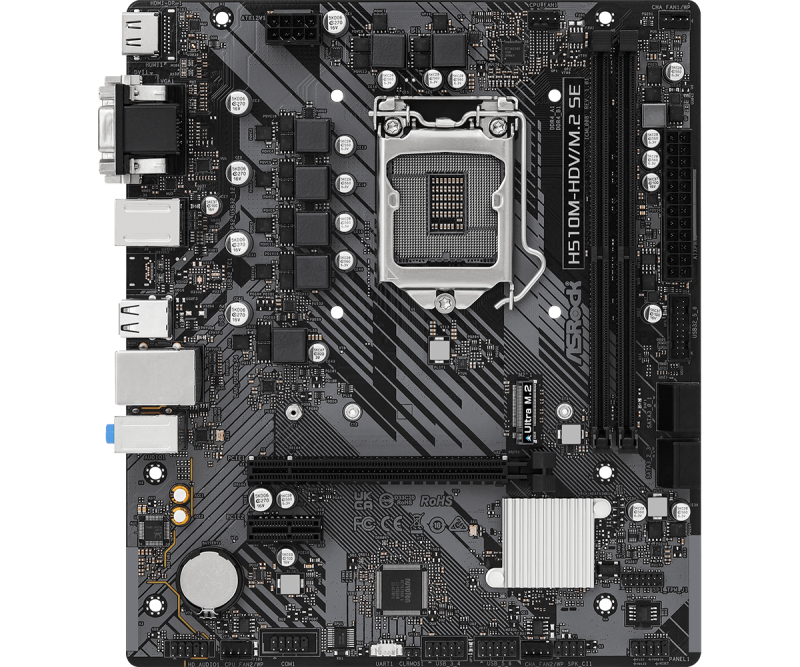

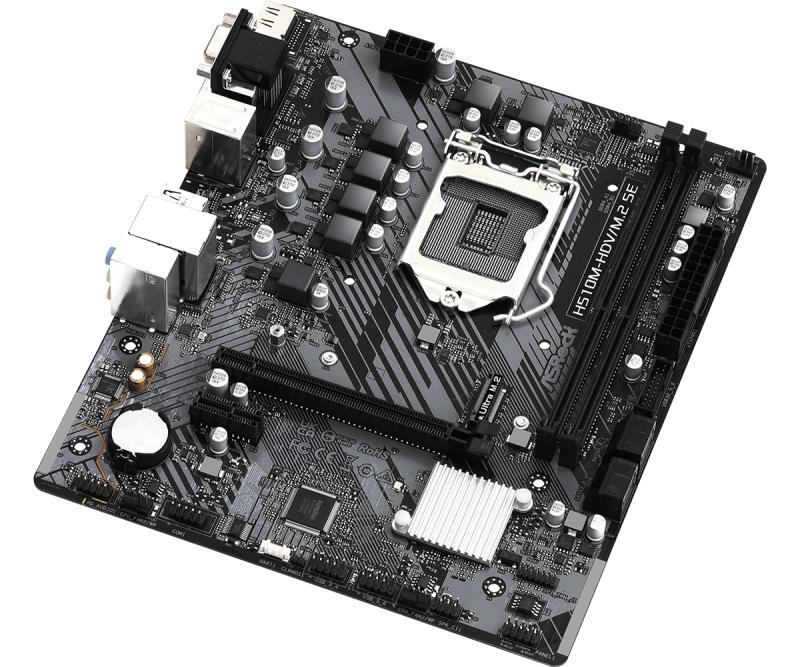

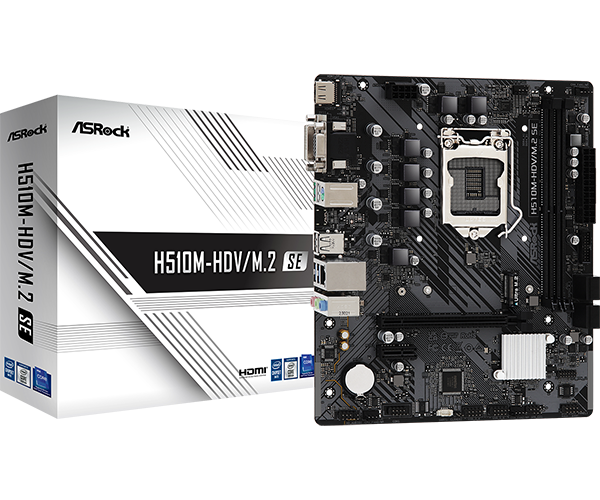

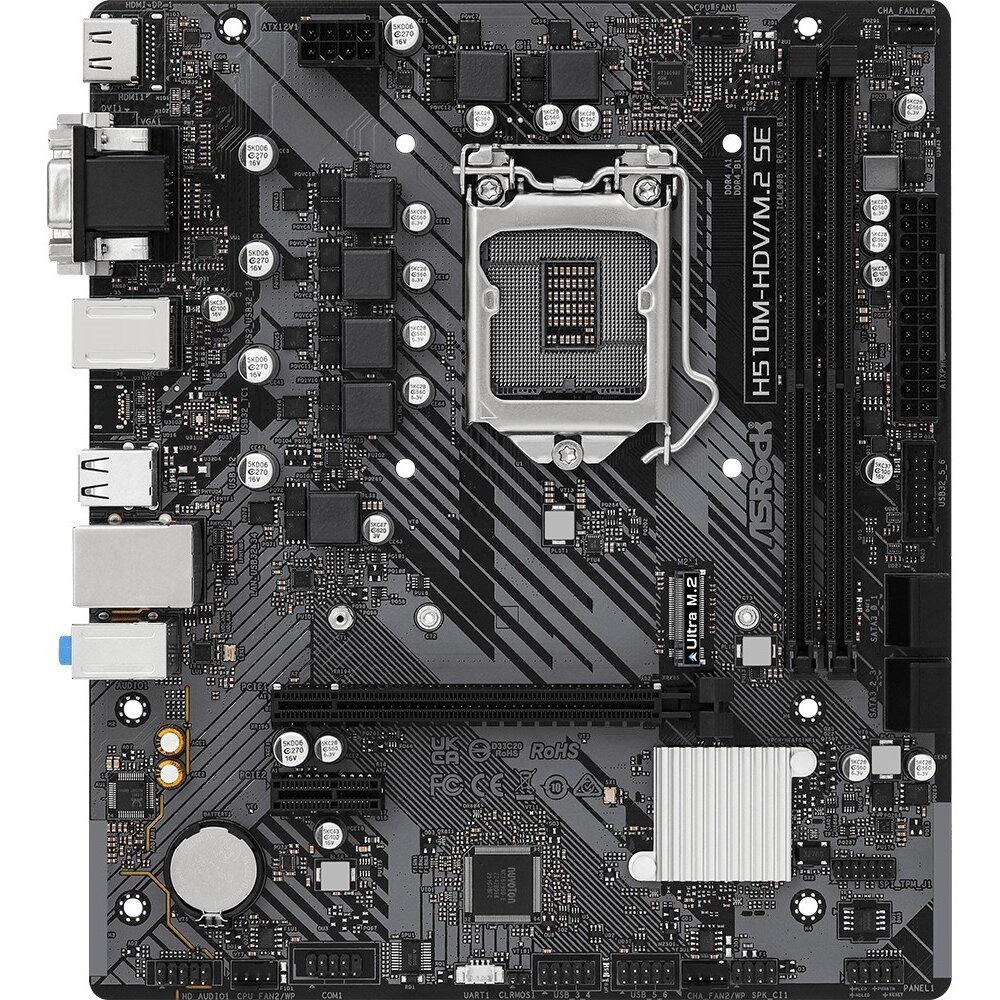

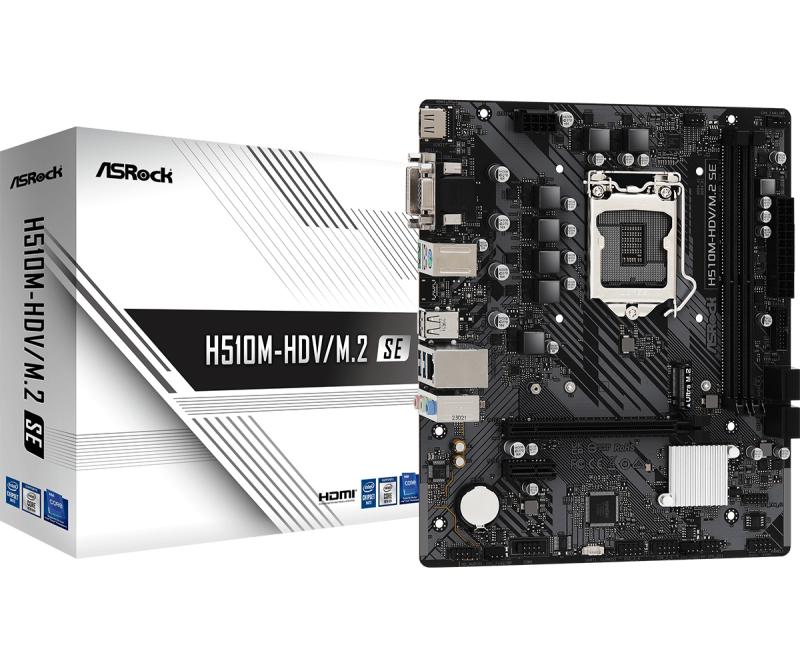

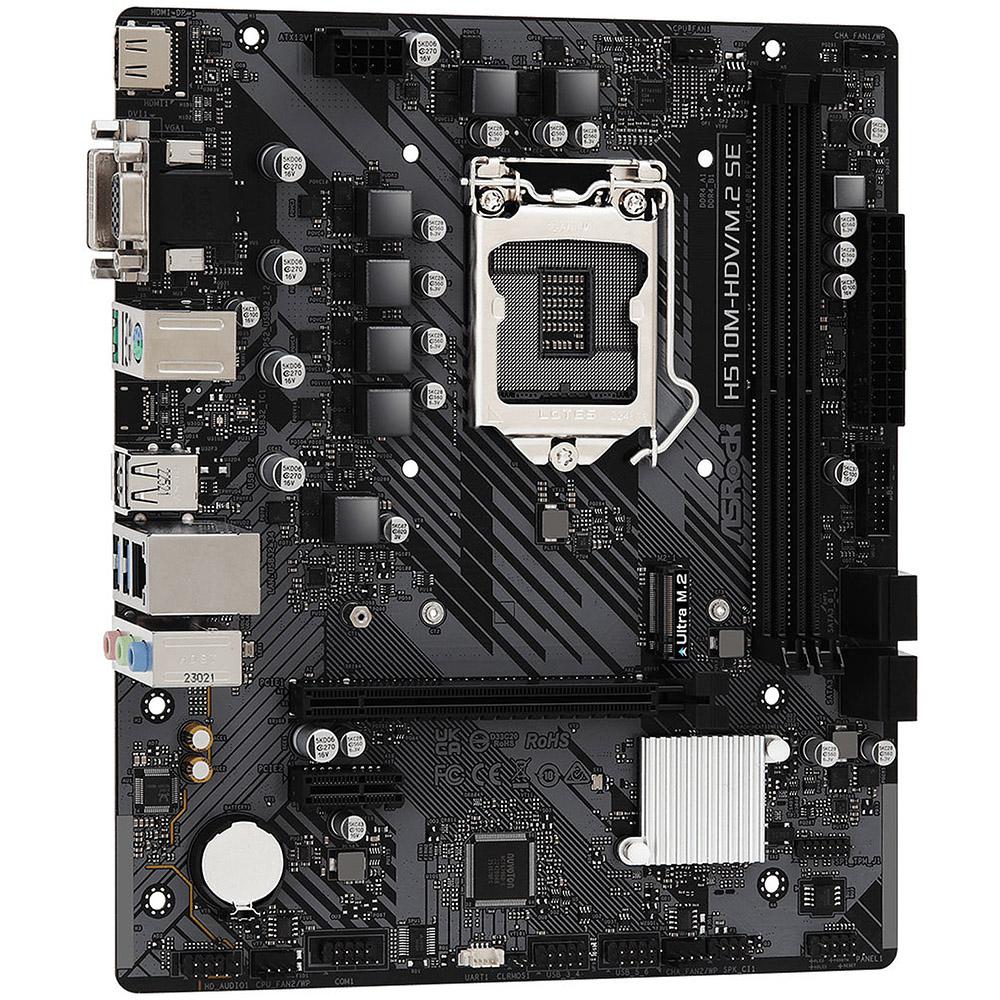

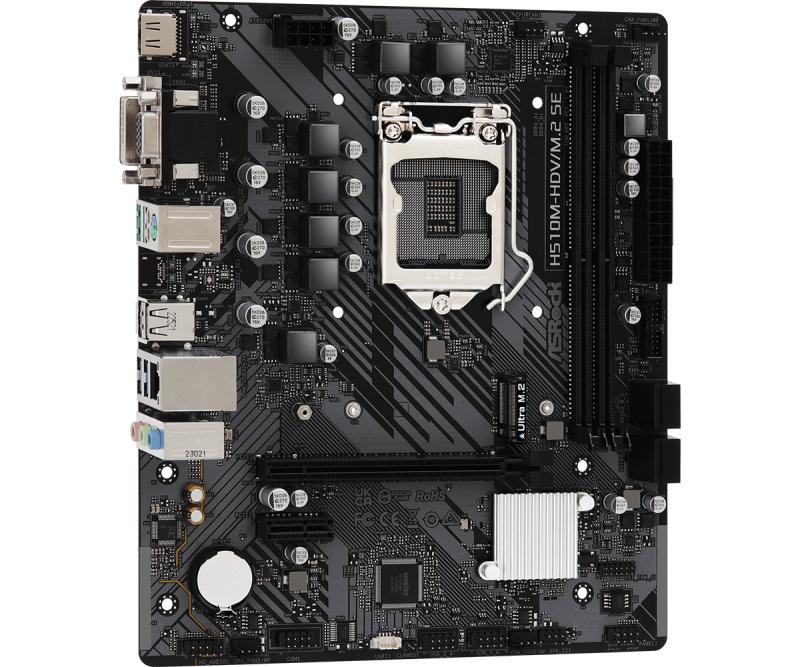

Placa de baza ASROCK H510M-HDV/M.2 SE LGA1200

540,04 lei
Stoc Epuizat

Stoc epuizat

Compare
Cod produs: H510M-HDV/M.2 SE Categorie:

Placa de baza ASROCK H510M-HDV/M.2 SE LGA1200, 2X DDR4 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1x HDMI, 1x Ultra M.2, 4xSATA3 6GB/s, mATX

PCI

0

Serial-or-Paralel

No/No

Video-Connection

DVI/HDMI

Wi-Fi

No

Onboard-CPU

No

Sustainability compliance

Yes

RAID support

Yes

Component for

PC

USB connector type

USB Type-A

Ethernet interface type

Gigabit Ethernet

Memory channels

Dual-channel

Processor manufacturer

Intel

Maximum internal memory

64 GB

Ethernet LAN

Yes

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

Headphone outputs

1

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Audio output channels

7.1 channels

PCI Express x1 (Gen 3.x) slots

1

Line-in

Yes

Audio Chip

Realtek ALC897

PCI Express x16 (Gen 4.x) slots

1

Number of memory slots

2

Supported storage drive types

HDD & SSD

Supported memory types

DDR4-SDRAM

COM ports quantity

1

Number of M.2 (M) slots

1

VGA (D-Sub) ports quantity

1

HDCP

Yes

HDMI version

1.4/2.0

DVI-D ports quantity

1

Sustainability certificates

ErP

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Model Chipset

H510

Gaming

Nu

Format

Micro-ATX (mATX)

Soclu Procesor

Socket 1200

Tip Memorie

DDR4

Numar sloturi memorie

2

Memorie maxima

64 GB

Tip slot interfata grafica

PCIe 4.0 x16

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Nu

Bluetooth

Nu

USB Type-C

Da

HDMI

Da

Thunderbolt

Nu

Sloturi M.2

1

RJ-45 LAN

1

Memory slots type

DIMM

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

PS/2 ports quantity

1

Motherboard form factor

micro ATX

BIOS type

UEFI AMI

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

TPM connector

Yes

12V power connector

Yes

Cables included

SATA

ECC сompatibility

Non-ECC

BIOS memory size

128 Mbit

Chassis intrusion connector

Yes

LAN controller

Realtek 8111H

Processor socket

LGA 1200 (Socket H5)

Number of storage drives supported

5

Supported memory clock speeds

3200 MHz

Supported storage drive interfaces

PCI Express 3.0, SATA III

Number of displays supported

3

Motherboard chipset

Intel H470

Width

231 mm

Depth

198 mm

Compliance certificates

CE, EuP, Federal Communications Commission (FCC)

Producator

ASROCK

Garantie

36
